Description

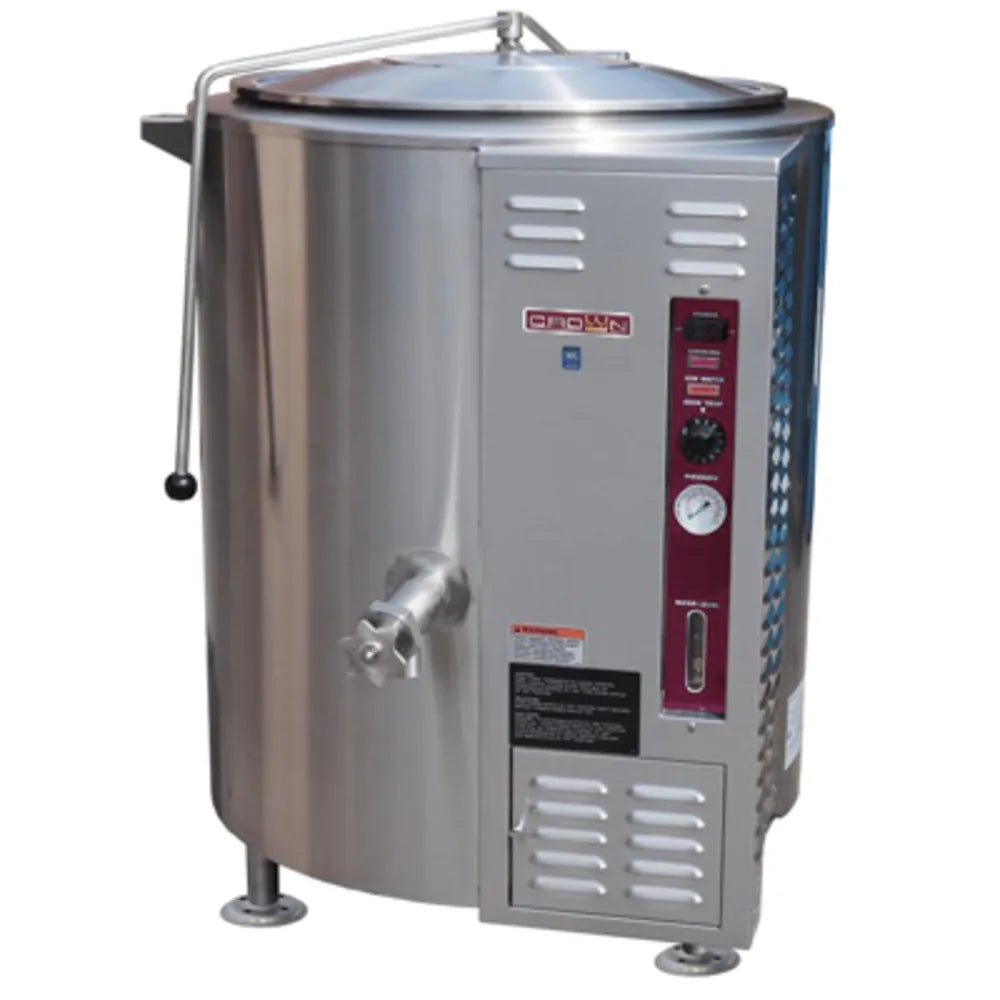

The GL-20E is a Crown Steam Liquid Propane and Natural Gas Tri-Leg Stationary Kettle. The kettle shall be constructed with an exterior of type 304 stainless steel, #4 sanitary finish and 6” (152mm) stainless steel adjustable legs. The interior kettle liner shall be a one piece welded construction made with type 316 stainless steel with #4 sanitary finish, 2/3 jacketed and shall be furnished with a 2” (50 mm) tangent draw off valve with strainer as standard.
The recessed control panel shall be located on the front side of the unit in full view of the operator and easy to use. Standard controls include a direct immersion thermostat, water sight glass, cooking light, pressure gauge and low water indicator light. Safety features shall include a low water cut off, pressure relief valve, pressure switch and a 100% safety gas shutoff valve. Includes faucet bracket. The kettle has a 2/3 steam jacketed body sheathed in stainless steel and is air gap insulated. The steam kettle temperature ranges shall be between 165°F to 275°F (74°C to 135°).
Specifications
| Specifications | |
|---|---|
| Model | GL-20E |
| Length | 24.75 Inches |
| Width | 31.13 Inches |
| Height | 40.88 Inches |
| Temperature Range | 165°F - 285°F / 74°C to 140°C |
| Total BTU | 100,000 BTU/Hr |
| Wattage | 345 kPa |
| Natural Gas Pipe Pressure | 6"-14 w.c. |
| Liquid Propane Gas Pipe Pressure | 11"-14 w.c. |
